| 型號(hào) Model | 庫(kù)存 | 尺寸Size (mm) | 刀片 Insert | 刀墊 Shim | 杠桿 Lever | 螺釘 Screw | 彈簧銷 Tubular rivet | 扳手 Hex wrench | |||||||

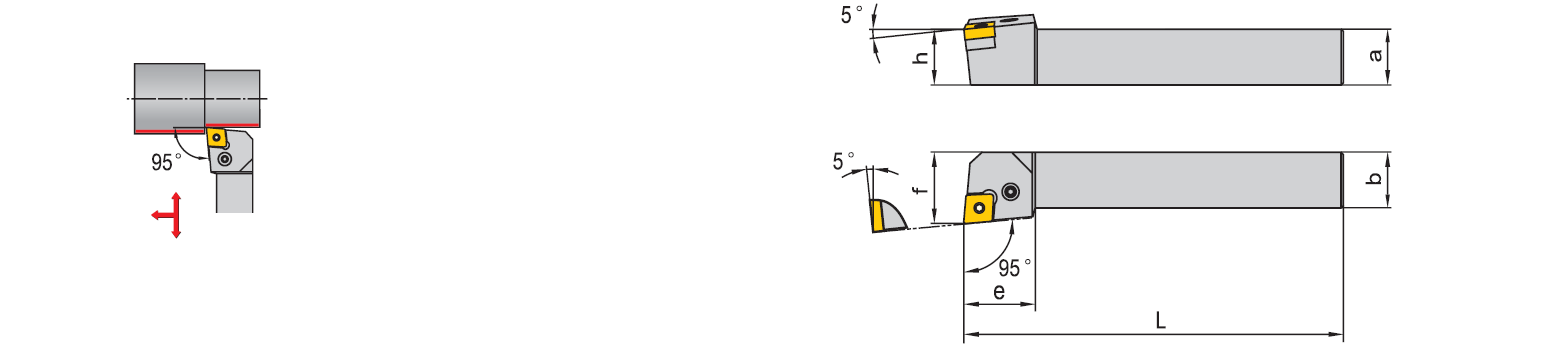

| 右刀 Right hand | 左刀 Left hand | R | L | a | b | L | h | f | e | ||||||
| PCLNR3232P16 PCLNR4040R16 | PCLNL3232P16 PCLNL4040R16 | ○ ○ | ○ ○ | 32 40 | 32 40 | 170 200 | 32 40 | 40 50 | 38 38 | CN..1606.. | PC1604 | PL-5 | PS0820A | SP08 | S3 |
| PCLNR4040R19 PCLNR5050S19 | PCLNL4040R19 PCLNL5050S19 | ○ ○ | ○ ○ | 40 50 | 40 50 | 200 250 | 40 50 | 50 60 | 38 38 | CN..1906.. | PC1904 | PL-6 | PS1027 | SP10 | S4 |
| PCLNR4040R25 PCLNR5050S25 | PCLNL4040R25 PCLNL5050S25 | ○ ○ | ○ ○ | 40 50 | 40 50 | 200 250 | 40 50 | 50 60 | 50 50 | CN..2509.. | PC2506 | PL-8 | PS1236 | SP13 | S6 |
