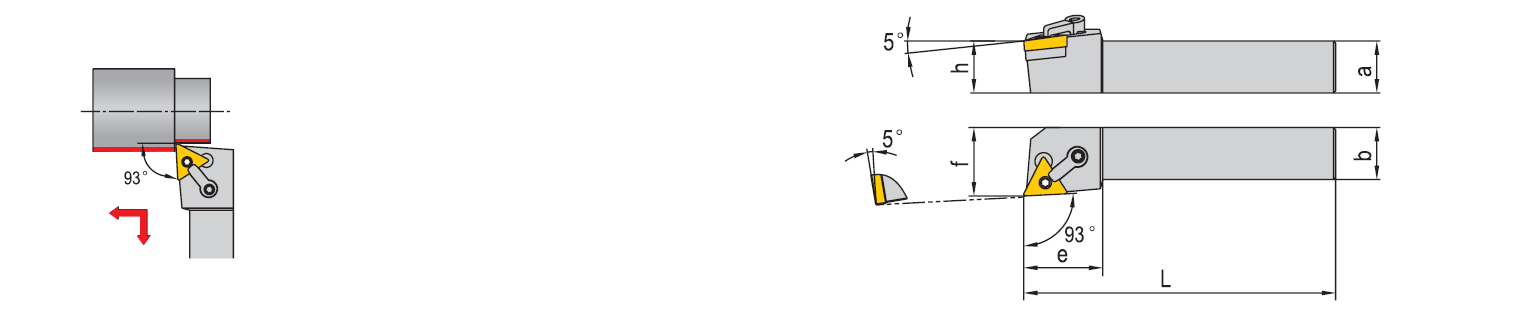

| 型號(hào) Model | 庫存 Stock | 尺寸Size (mm) | 刀片 Insert | 刀墊 Shim | 銷釘 Lock pin | 壓板 Clamp | 雙頭螺栓 Clamp screw | 扳手 Hex wrench | |||||||
| 右刀 Right hand | 左刀 Left hand | R | L | a | b | L | h | f | e | ||||||
| MVJNR1616H16 | MVJNL1616H16 MVJNL2020K16 MVJNL2525M16 MVJNL3232P16 | ○ ● ● ● | ○ ● ● ● | 16 20 25 32 | 16 20 25 32 | 100 125 150 170 | 16 20 25 32 | 20 25 32 40 | 42 42 42 42 | VN..1604.. | IVSN-322 | NL-34L | CL-30 | XNS-59 | S5/32，S5/64 |
| MVJNR2020K16 MVJNR2525M16 MVJNR3232P16 | VN..1604.. | IVSN-322 | NL-34L | CL-30 | XNS-510 | S5/32，S5/64 | |||||||||
