QE端面切槽刀

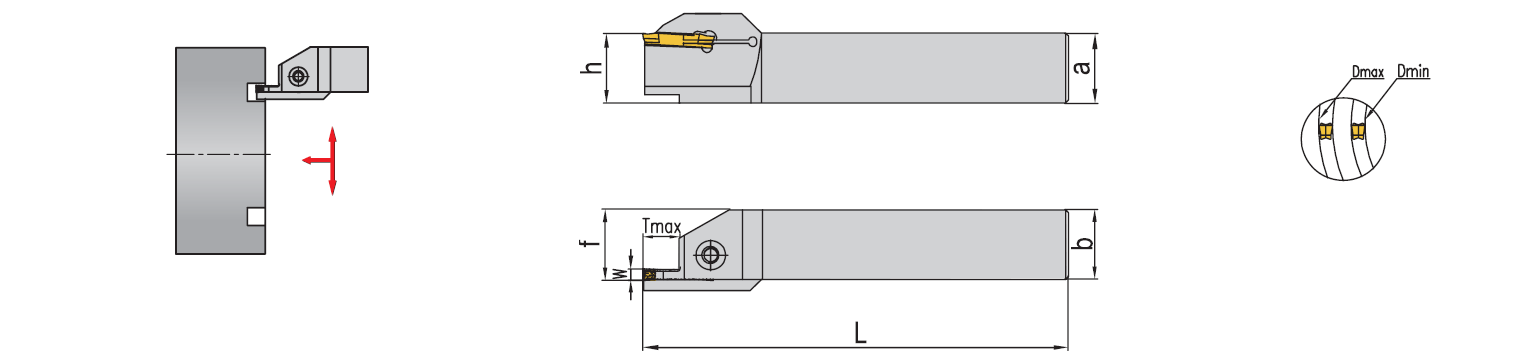

型號 Model		庫存 Stock		尺寸Size (mm)							刀片 Insert	螺釘 Screw	扳手 Hex wrench
型號 Model		庫存 Stock		尺寸Size (mm)
右刀 Right hand	左刀 Left hand	R	L	W	Tmax	D	a=h	b	f	L


QE2020R02K08-H048060	QE2020L02K08-H048060	○	○	2	8	48-60	20	20	20.25	125	QE2.00	MS05016	S4
QE2020R02K08-H060075	QE2020L02K08-H060075	○	○	2	8	60-75	20	20	20.25	125
QE2020R02K08-H075100	QE2020L02K08-H075100	○	○	2	8	75-100	20	20	20.25	125
QE2525R02M08-H048060	QE2525L02M08-H048060	○	○	2	8	48-60	25	25	25.25	150
QE2525R02M08-H060075	QE2525L02M08-H060075	○	○	2	8	60-75	25	25	25.25	150
QE2525R02M08-H075100	QE2525L02M08-H075100	○	○	2	8	75-100	25	25	25.25	150
QE2020R03K16-H075100	QE2020L03K16-H075100	○	○	3	16	75-100	20	20	20.25	125	QE3.00	MS05016	S4
QE2525R03M16-H075100	QE2525L03M16-H075100	○	○	3	16	75-100	25	25	25.25	150
QE3232R03P16-H075100	QE3232L03P16-H075100	○	○	3	16	75-100	32	32	32.25	170
QE2020R04K16-H038048	QE2020L04K16-H038048	○	○	4	16	38-48	20	20	20.5	125	QE4.00	MS05016	S4
QE2020R04K16-H048060	QE2020L04K16-H048060	○	○	4	16	48-60	20	20	20.5	125
QE2020R04K16-H060075	QE2020L04K16-H060075	○	○	4	16	60-75	20	20	20.5	125
QE2020R04K16-H075100	QE2020L04K16-H075100	○	○	4	16	75-100	20	20	20.5	125
QE2020R04K16-H100140	QE2020L04K16-H100140	○	○	4	16	100-140	20	20	20.5	125
QE2020R04K16-H140240	QE2020L04K16-H140240	○	○	4	16	140-240	20	20	20.5	125
QE2020R04K16-H240480	QE2020L04K16-H240480	○	○	4	16	240-480	20	20	20.5	125
QE2525R04M16-H038048	QE2525L04M16-H038048	○	○	4	16	38-48	25	25	25.5	150
QE2525R04M16-H048060	QE2525L04M16-H048060	○	○	4	16	48-60	25	25	25.5	150
QE2525R04M16-H060075	QE2525L04M16-H060075	○	○	4	16	60-75	25	25	25.5	150
QE2525R04M16-H075100	QE2525L04M16-H075100	○	○	4	16	75-100	25	25	25.5	150
QE2525R04M16-H100140	QE2525L04M16-H100140	○	○	4	16	100-140	25	25	25.5	150
QE2525R04M16-H140240	QE2525L04M16-H140240	○	○	4	16	140-240	25	25	25.5	150
QE2525R04M16-H240480	QE2525L04M16-H240480	○	○	4	16	240-480	25	25	25.5	150
QE3232R04P16-H038048	QE3232L04P16-H038048	○	○	4	16	38-48	32	32	32.5	170
QE3232R04P16-H048060	QE3232L04P16-H048060	○	○	4	16	48-60	32	32	32.5	170
QE3232R04P16-H060075	QE3232L04P16-H060075	○	○	4	16	60-75	32	32	32.5	170
QE3232R04P16-H075100	QE3232L04P16-H075100	○	○	4	16	75-100	32	32	32.5	170
QE3232R04P16-H100140	QE3232L04P16-H100140	○	○	4	16	100-140	32	32	32.5	170
QE3232R04P16-H140240	QE3232L04P16-H140240	○	○	4	16	140-240	32	32	32.5	170
QE3232R04P16-H240480	QE3232L04P16-H240480	○	○	4	16	240-480	32	32	32.5	170
QE2525R05M20-H054070	QE2525L05M20-H054070	○	○	5	20	54-70	25	25	25.5	150	QE5.00	MS05020	S5
QE2525R05M20-H070095	QE2525L05M20-H070095	○	○	5	20	70-95	25	25	25.5	150
QE2525R05M20-H095130	QE2525L05M20-H095130	○	○	5	20	95-130	25	25	25.5	150
QE2525R05M20-H130180	QE2525L05M20-H130180	○	○	5	20	130-180	25	25	25.5	150
QE2525R05M20-H180000	QE2525L05M20-H180000	○	○	5	20	180-	25	25	25.5	150
QE3232R05P20-H054070	QE3232L05P20-H054070	○	○	5	20	54-70	32	32	32.5	170
QE3232R05P20-H070095	QE3232L05P20-H070095	○	○	5	20	70-95	32	32	32.5	170
QE3232R05P20-H095130	QE3232L05P20-H095130	○	○	5	20	95-130	32	32	32.5	170
QE3232R05P20-H130180	QE3232L05P20-H130180	○	○	5	20	130-180	32	32	32.5	170
QE3232R05P20-H180000	QE3232L05P20-H180000	○	○	5	20	180-	32	32	32.5	170
